Precision CNC Machining China Custom Titanium Alloy Pressure Vessel Manufacturing

MOQ:	100
Prijs:	10-20
Betalingsvoorwaarden:	L/c, d/a, d/p

Detailinformatie

Productbeschrijving

Detailinformatie

Testapparatuur:

Japan Keyence IM7000

Materiële mogelijkheden:

roestvrij staal

Diameter:

0,325 inch, 0,13 inch

OEM -service:

aanvaardbaar

Maat:

Aangepast

Kwaliteit:

100% inspectie

Coaxialiteit:

± 0,01 mm

Verwerking:

CNC -bewerking, CNC Milling, CNC draaien

Dienst:

OEM/ODM/Customized/Design

Ontwerpsoftware:

Pro/E, Solidworks, UG

Type:

Borend, Andere Machinaal bewerkende Diensten

Leveringspoort:

Shanghai

Parallelisme Tolerantie:

± 0,02 mm

Garantie:

1 jaar

Gietmethode:

Die casting

Gebruik:

Industrieel

Applicatie:

Machines

Weerstand:

Corrosiebestendig

Originele Hardheid:

HRC35-42

Nauwkeurigheid:

0,001 mm

De tolerantie:

+ -0,01 mm

Castingproces:

Ernstafgietsel

Bewerkingstype:

Fressen, slijpen, polijsten

Holte:

Enkel

Zoutgranen:

72 uur

Materiële mogelijkheden:

Aluminium

Levering vermogen:

10000

Markeren:

custom titanium alloy pressure vessel

CNC machining pressure vessel manufacturing

precision CNC titanium pressure vessel

Productbeschrijving

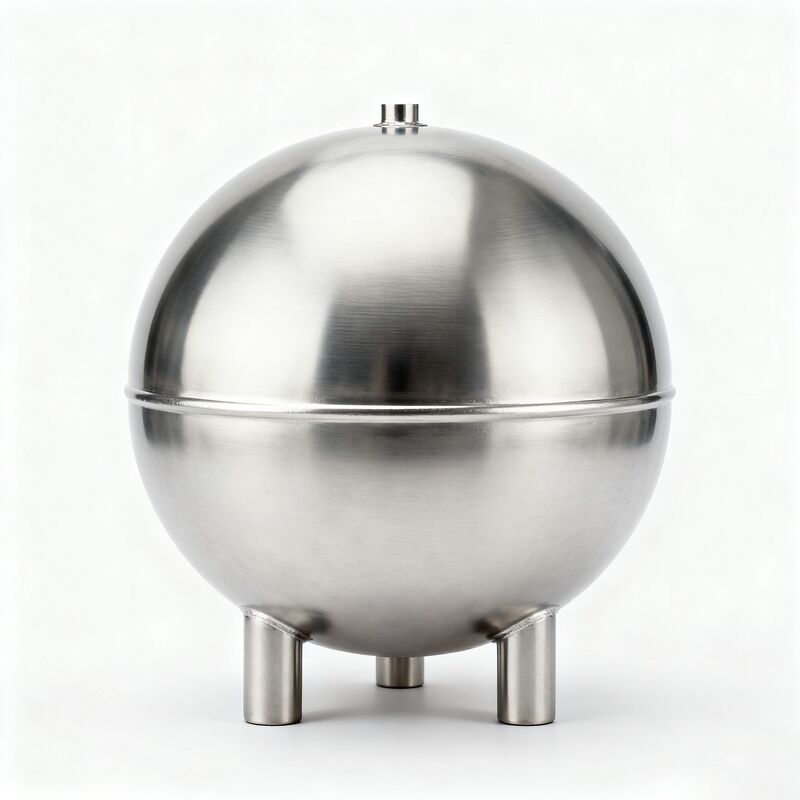

Precision CNC Machining China Custom Titanium Alloy Pressure Vessel Manufacturing

As a technical engineer specializing in titanium alloy processing, I focus on the manufacturing of pressure vessels that require precision and reliability. These vessels are machined from titanium grades like TA2, TA9, TA10, or TC4 using CNC centers to ensure uniform wall thickness and structural integrity. Titanium alloy offers high strength-to-weight ratio and exceptional corrosion resistance, making it ideal for extreme operating conditions. Our production process adheres to strict pressure vessel standards, from initial material cutting to final assembly. For instance, we employ K-TIG deep penetration welding to achieve full penetration in single passes, minimizing heat input and avoiding defects like porosity. This approach ensures safety under high-pressure or cryogenic environments.

Features

Superior Corrosion Resistance: Resists most acidic and alkaline media (e.g., NaOH, KOH). In a chemical project, vessels exposed to dye intermediates showed no pitting after 5 years of service.
High Strength and Lightweight: Tensile strength exceeds stainless steel with 40% weight reduction, critical for aerospace and mobile equipment.
Broad Temperature Tolerance: Operating range from -269°C to 650°C (depending on material). Tests at -196°C (liquid nitrogen) under 330 bar pressure confirmed structural stability.
Precision Machining: CNC milling and turning ensure accuracy (±0.1mm) for flanges and heads. For composite structures, explosion bonding securely joins titanium layers to substrates like 16MnR.
Customization Options: Configurable with jackets for heating/cooling, agitation systems (anchor/paddle types), and multiple ports (gas inlet, sampling), with variable speed control (0-500r/min).

Technical Parameters

Parameter	Specification	Notes
Design Pressure	-0.1 to 35 MPa (vacuum to high-pressure)	Extendable to 40MPa
Design Temperature	-269°C to 650°C	Pure titanium up to 230°C, alloys up to 300°C
Volume Range	50L to 30,000L	Custom sizes available
Main Material	TA1/TA2/TA9/TA10/TC4	Clad plates (e.g., 16MnR + Ti) optional
Agitation Power	0.5kW to 15kW	Explosion-proof motors available
Heating Methods	Electric, thermal oil, steam	Temperature control ±1°C
Welding Standard	K-TIG (9.5mm full penetration in one pass)	100% nondestructive testing

Applications

Chemical and Dye Industries: Reactors for sulfidation, nitration, and polymerization, resistant to corrosive agents.

Aerospace: Propellant tanks for liquid oxygen/nitrogen, validated at -196°C.

Pharmaceutical and Food: GMP-compliant vessels preventing metal ion contamination.

Energy and Metallurgy: Hydrogen storage systems and high-pressure extraction units.

Customization Services

We offer end-to-end solutions from design to production. For example, we developed a dual-temperature vessel (-50°C cryogenic to 230°C heating) using TA10 alloy and a segmented jacket design for rapid thermal switching. Services include 3D modeling, stress simulation (FEA), and compliance with ASME/GB standards. For small batches (e.g., 12 units), lead time is 4-6 weeks.

Support and Services

Technical Consultation: Free material selection guidance (e.g., comparing pure titanium vs. alloys).
Testing: Each vessel undergoes hydrostatic tests, leak checks, and X-ray weld inspection.
After-Sales: Installation support, maintenance reminders, and lifetime warranty for structural defects.
